Pathos series · Model PT002
Pathos Series – PT002
Fingerprint smart padlock with Morse code emergency opening
The Pathos PT002 is a zinc alloy smart padlock with a carbon steel shackle and IP54 protection that opens with a fingerprint and stores up to 10 of them. If the sensor is damaged, it opens with a previously recorded sequence of taps in Morse code. The battery is recharged from the USB Type-C port, and the padlock is suitable for lockers, gates, toolboxes, luggage and bicycles.
- High-precision fingerprint sensor
- Emergency opening

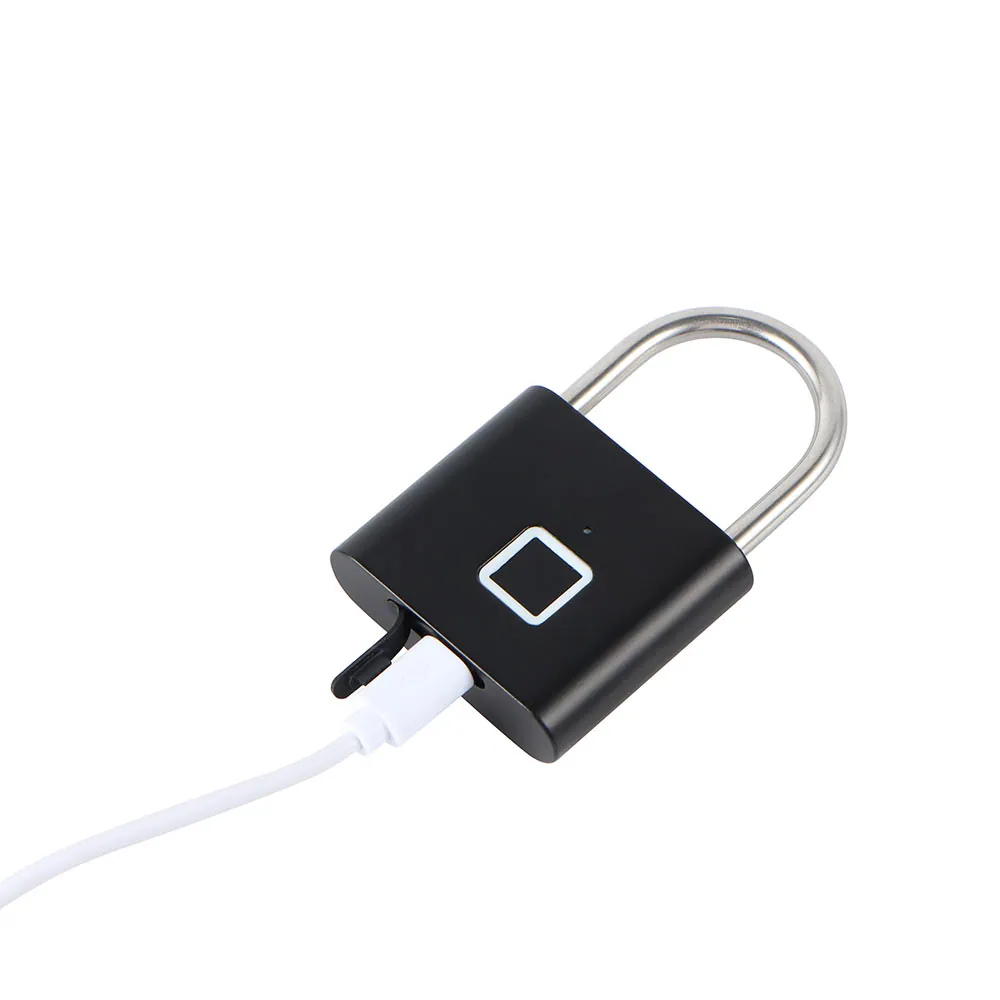

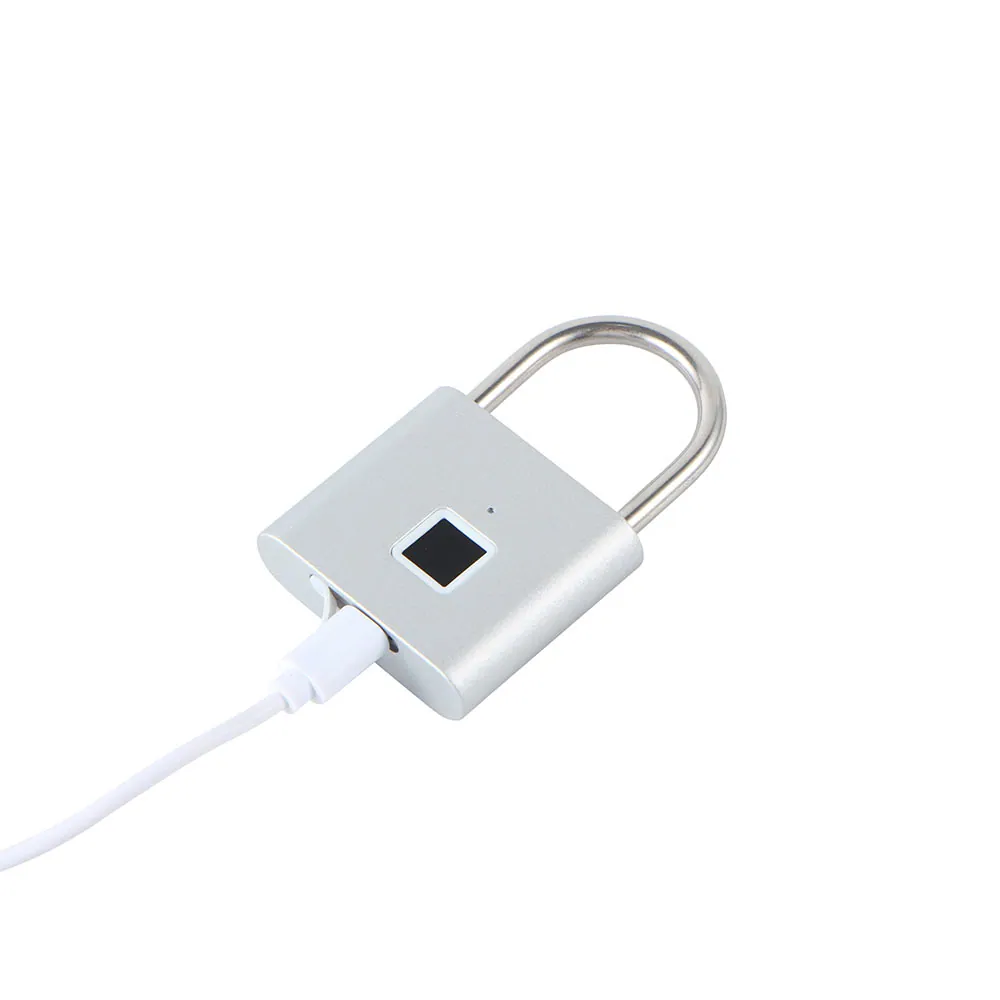

- USB Type-C port for charging when the battery is flat
- Long-life rechargeable battery
- IP54 water protection
- Low-battery warning
Technical specifications
Materials and finishes
- Material
- Zinc alloy with carbon steel plating
- Colour
- Black
- Shackle material
- Carbon steel
Unlocking and access
- Unlocking methods
- Fingerprint
- Emergency opening
- Morse code
- Fingerprints stored
- 10
- False acceptance rate
- < 0.001%
Installation
- Lock body material
- Aluminium alloy
- Uses
- Lockers, gates and fences, toolboxes, luggage and travel bags, bicycles (with chains or cables), lockable cupboards
Power supply and operating conditions
- Protection rating
- IP54
- Operating voltage
- DC 3.4-5.2V
- Power supply
- Charging from the USB Type-C port
- Operating temperature
- -10℃ - 50℃
Packaging
- Package dimensions
- 105x 75x 18 mm
- Package weight
- 125g
Documents
The other models in the series
What changes compared with the Pathos Series – PT002, according to the manufacturer's data sheets.
- Pathos Series – PT001Protection rating IP22; material zinc alloy
- Pathos Series – PT003Protection rating IP65; material zinc alloy
