Pathos series · Model PT001
Pathos Series – PT001
Fingerprint smart padlock with IP22 protection

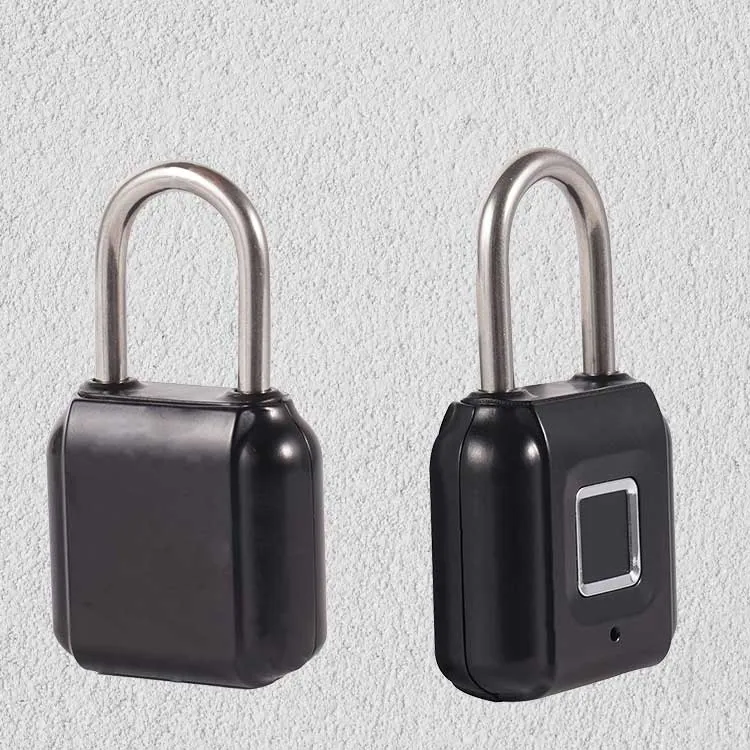

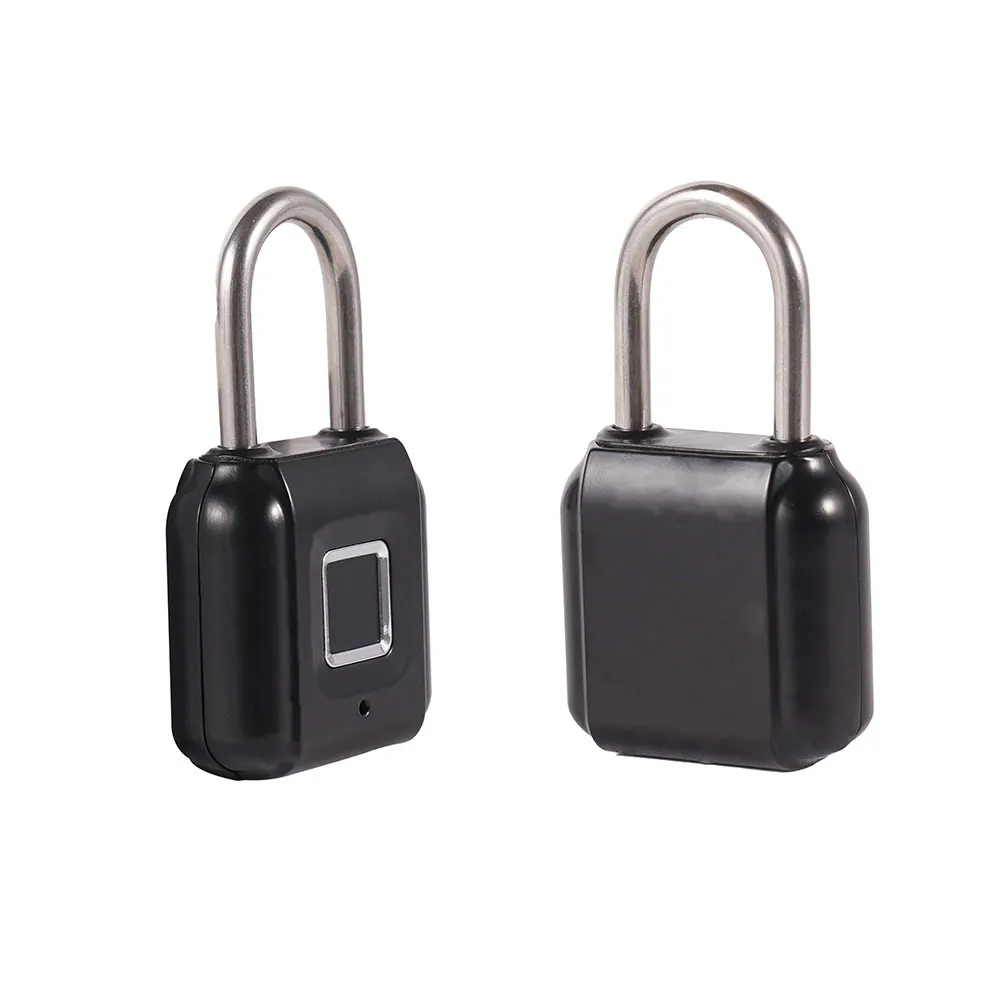

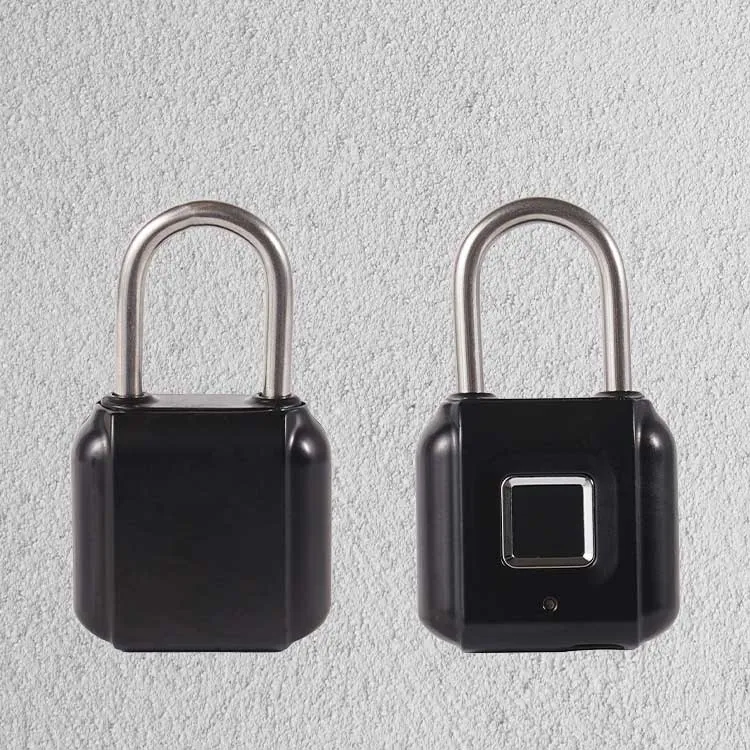

The Pathos PT001 is a zinc alloy smart padlock with a carbon steel shackle that opens with a fingerprint and stores up to 10 of them. The battery is recharged from the USB Type-C port and a warning signals when it is low. It is suitable for lockers, gates, toolboxes, luggage and, with chains or cables, bicycles.
- High-precision fingerprint sensor

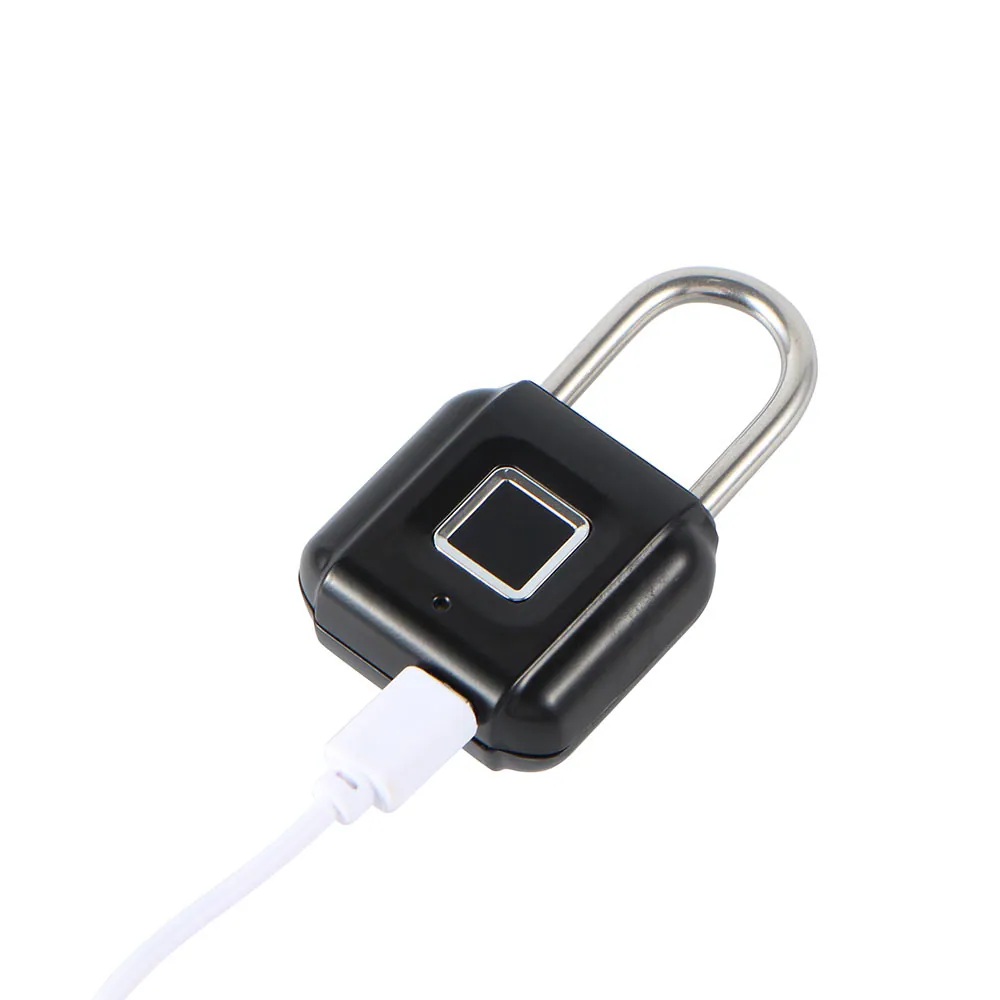

- USB Type-C port for charging when the battery is flat
- Long-life rechargeable battery

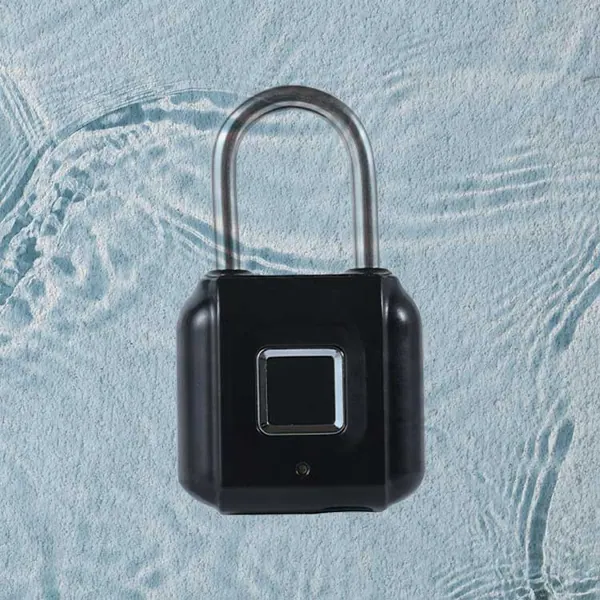

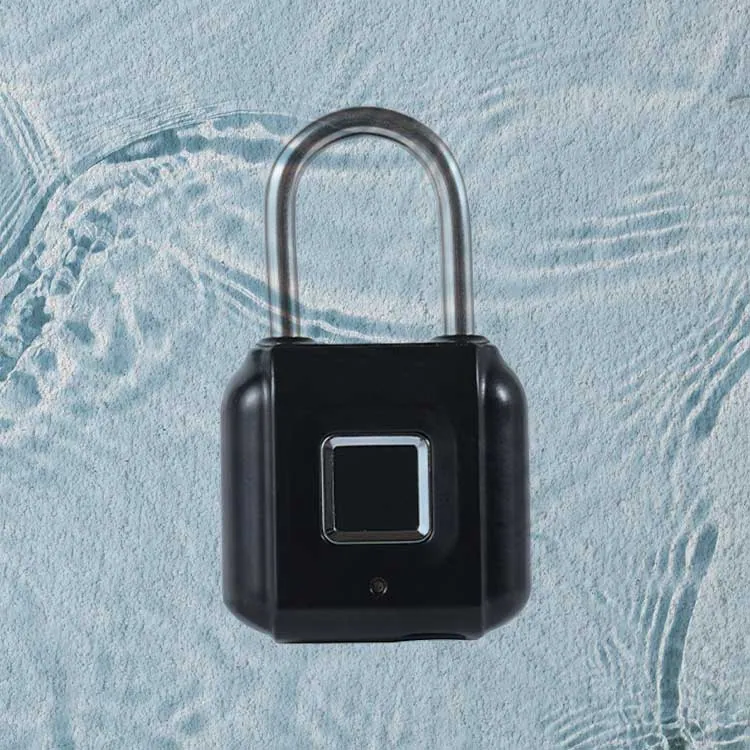

- IP22 water protection
- Low-battery warning
Technical specifications
Materials and finishes
- Material
- Zinc alloy
- Colour
- Black
- Shackle material
- Carbon steel
Unlocking and access
- Unlocking methods
- Fingerprint
- Fingerprints stored
- 10
- False acceptance rate
- < 0.001%
Installation
- Lock body material
- 304 stainless steel
- Uses
- Lockers, gates and fences, toolboxes, luggage and travel bags, bicycles (with chains or cables), lockable cupboards
Power supply and operating conditions
- Protection rating
- IP22
- Operating voltage
- DC 3.4-5.2V
- Power supply
- Charging from the USB Type-C port
- Operating temperature
- -10℃- 45℃
- Operating humidity
- 15-95% RH

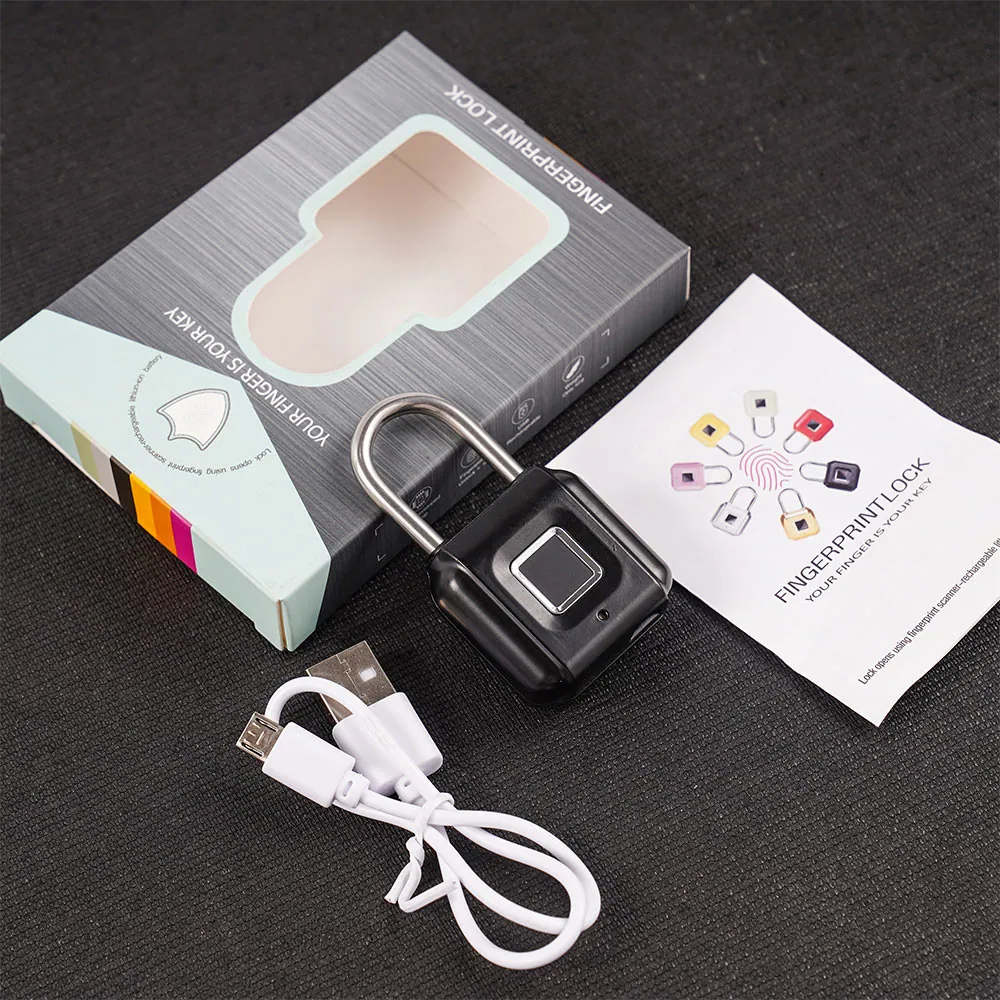

Packaging
- Package dimensions
- 62 x 35.8 x 16.5mm
- Package weight
- 80g
Documents
The other models in the series
What changes compared with the Pathos Series – PT001, according to the manufacturer's data sheets.
- Pathos Series – PT002Protection rating IP54; material zinc alloy with carbon steel plating
- Pathos Series – PT003Protection rating IP65
